9" LASER LED DRIVING LAMP SPOT BEAM 8 Deg 9-36V 152 Watt, 14500 LUMENS, IDL2306S
$319.00
9" LASER LED DRIVING LAMP SPOT BEAM 8 Deg 9-36V 152 Watt, 14500 LUMENS, IDL2306S
Additional Information

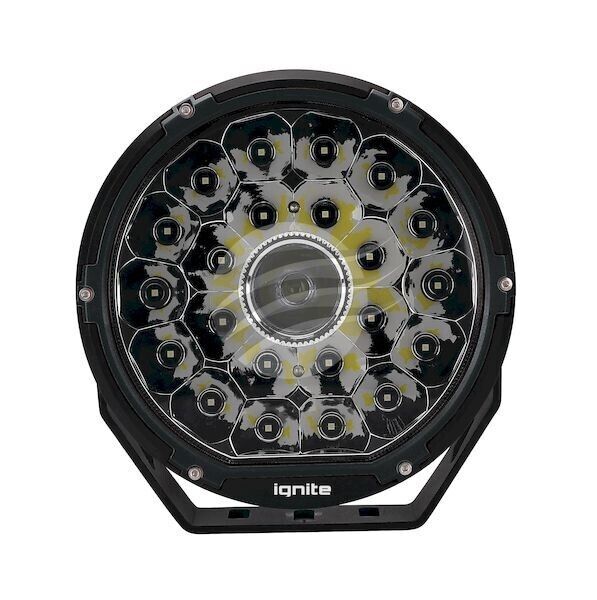

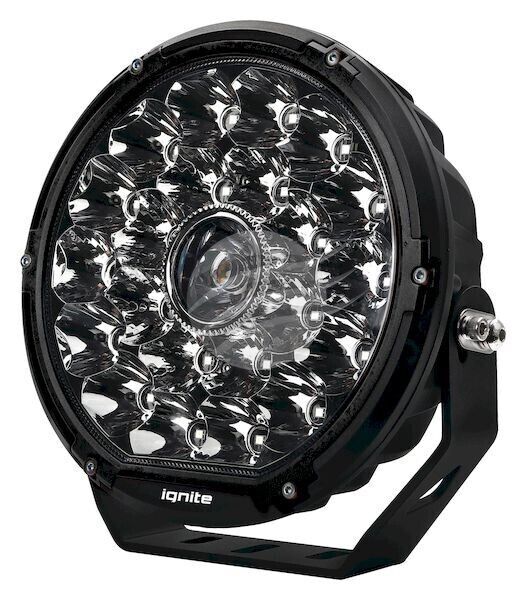

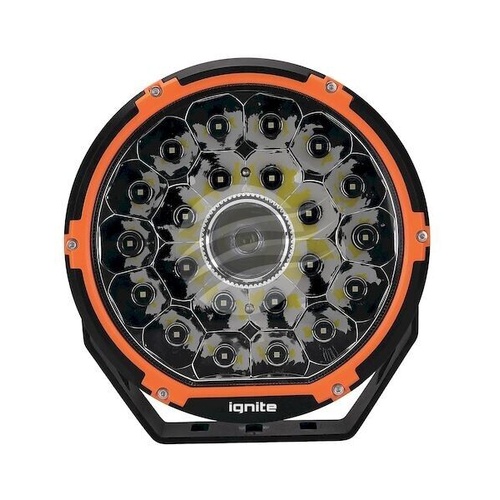

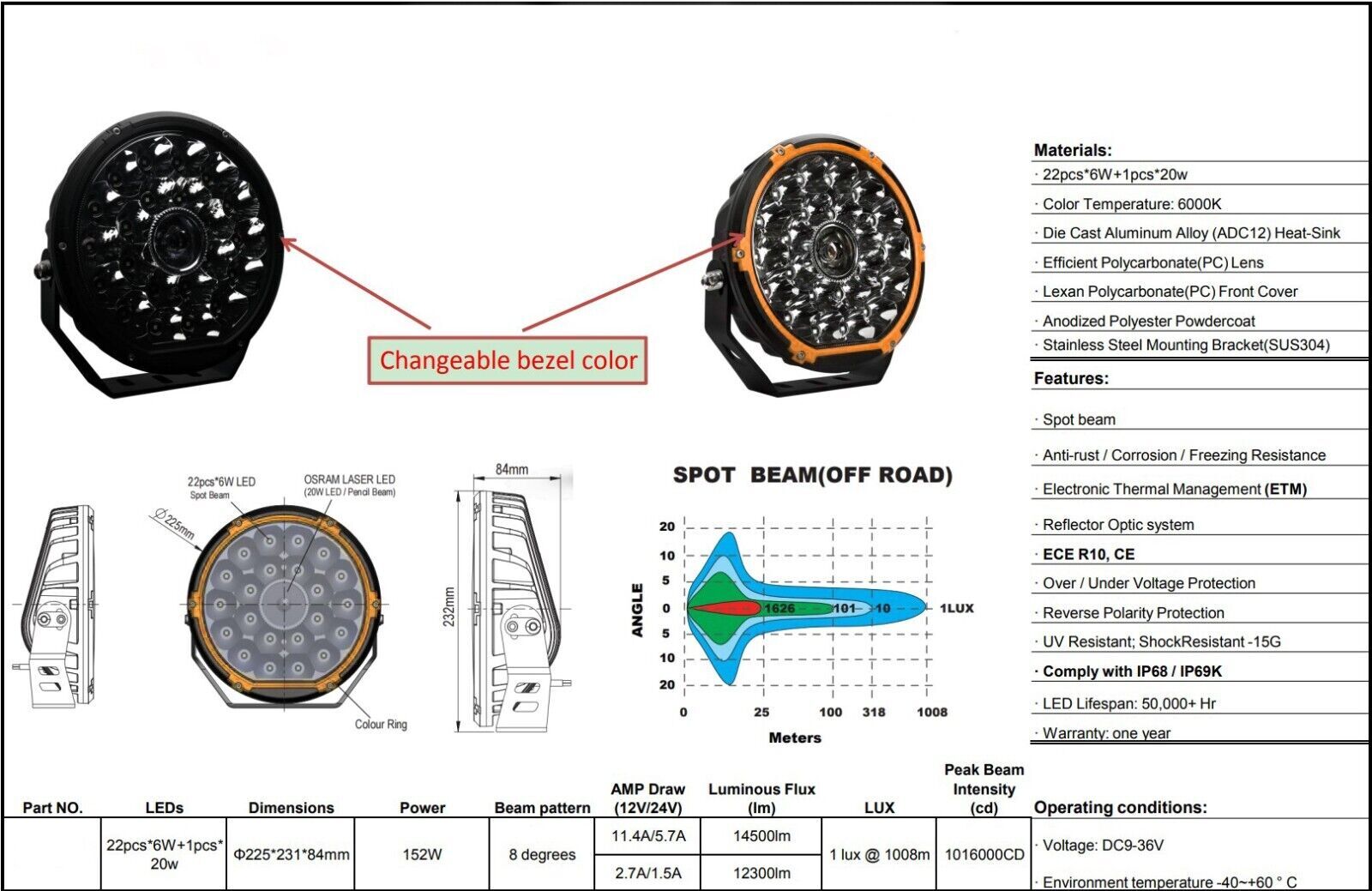

Ignite 9" Round Slimline Laser LED Driving Light 9 - 36 Volt 152 Watt
Combined Laser LED and LED Illumination Technology

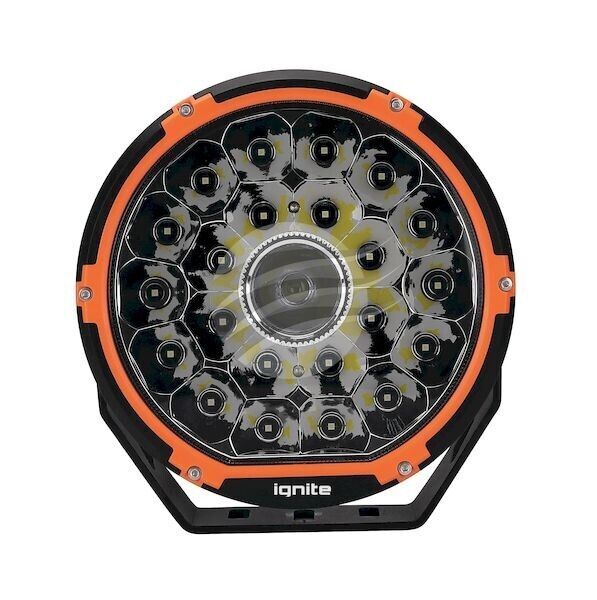

Orange Bezel fitted standard with interchangeable Black bezel also supplied
8° Laser Pencil Beam and 10° LED Spot Beam providing a combined Driving Beam pattern
22 x 6 Watt High Intensity LP LED's and 1 x 20 Watt High Intensity Osram Laser LED
14,500 Raw and 12,300 Effective Lumens and 6,000K

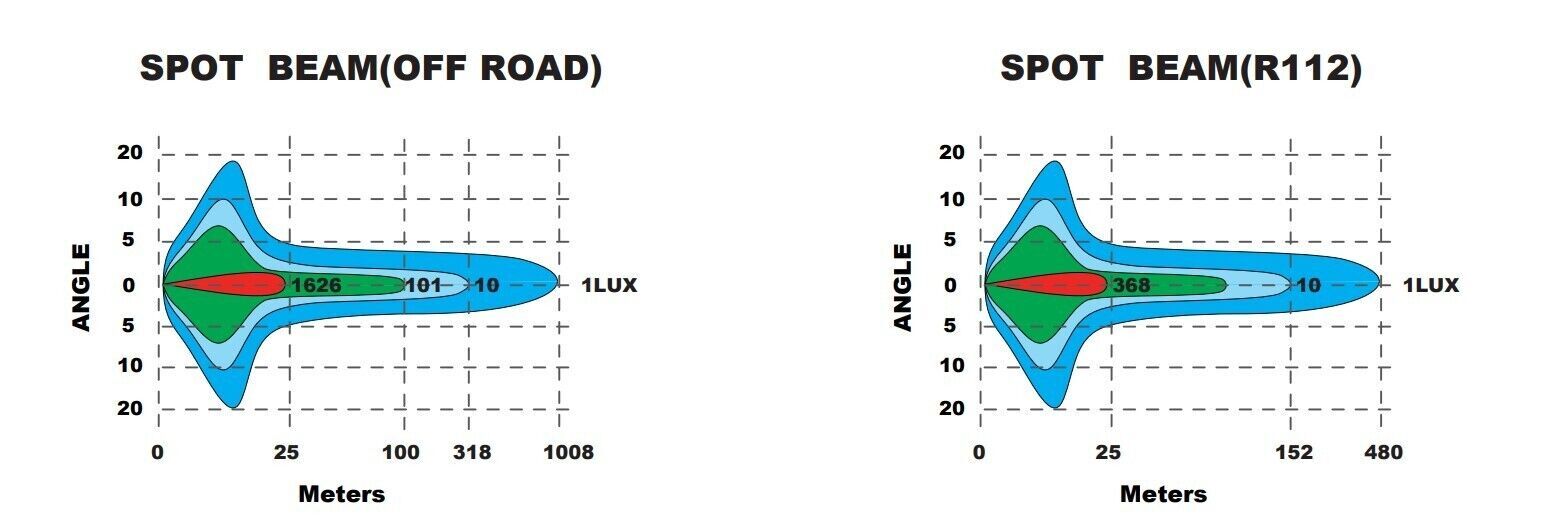

1 Lux @ 1,008m and 1,016,000cd Peak Beam Intensity
Current Draw: 11.4amp @ 12 Volt and 5.7amp @ 24 Volt
Combined Polycarbonate Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
Integrated Electronic Thermal Management (ETM)
Black Powder coated Die Cast Aluminium Alloy (ADC12) Housing with integrated Heat-Sink and Pressure Equalising Vent
Stainless Steel (SUS304) Multiple Bolt Mount Bracket and Hardware
500mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant to 15G
Anti Rust, corrosion and freezing resistance
50,000 Hours LED Lifespan
ECE R10 and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
Weight: 2.6kg
| Specifications | |
| Series | Other |
| Type | LED |
| Shape | Round |
| Voltage | Multivolt |
| Watts | Other |
| Beam Type | Spot |
| No. of LED | Other |
| Mount | Single Bolt |

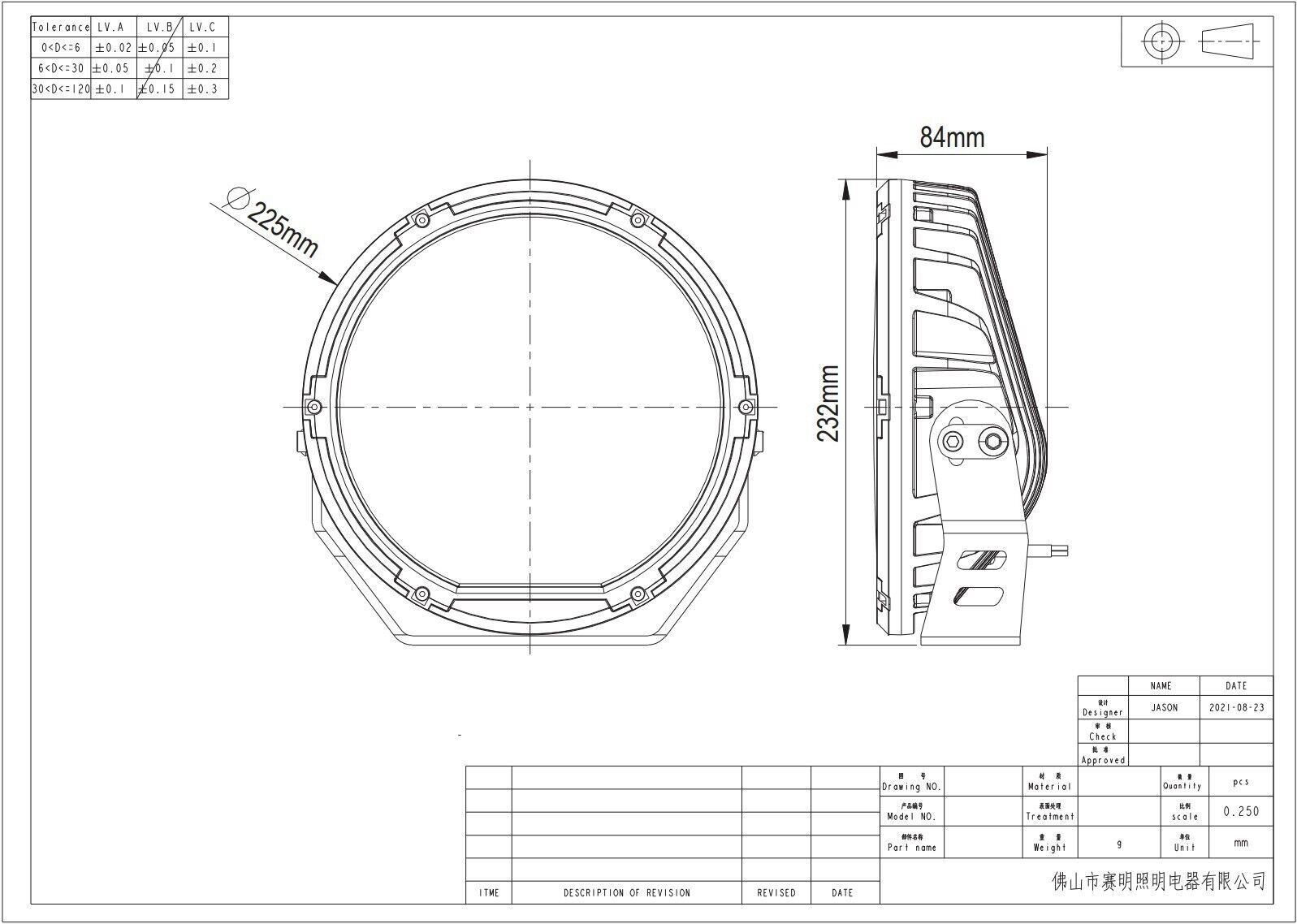

| Width (mm) | 225 |
| Height (mm) | 232 |
| Depth (mm) | 84 |
| SKU | IDL2306S36917 |
| Brand | IGNITE |
| Unit Of Measure | ea |
