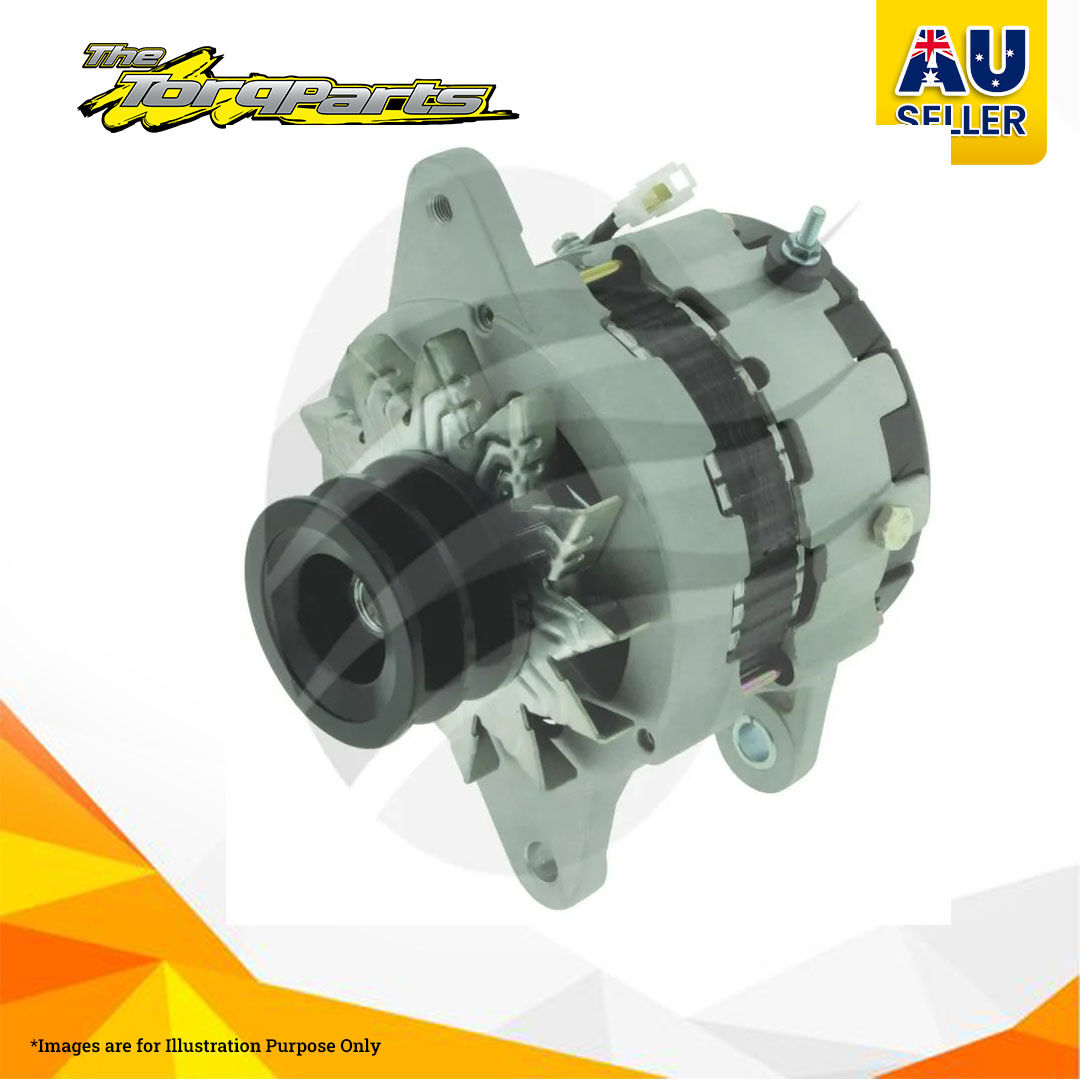

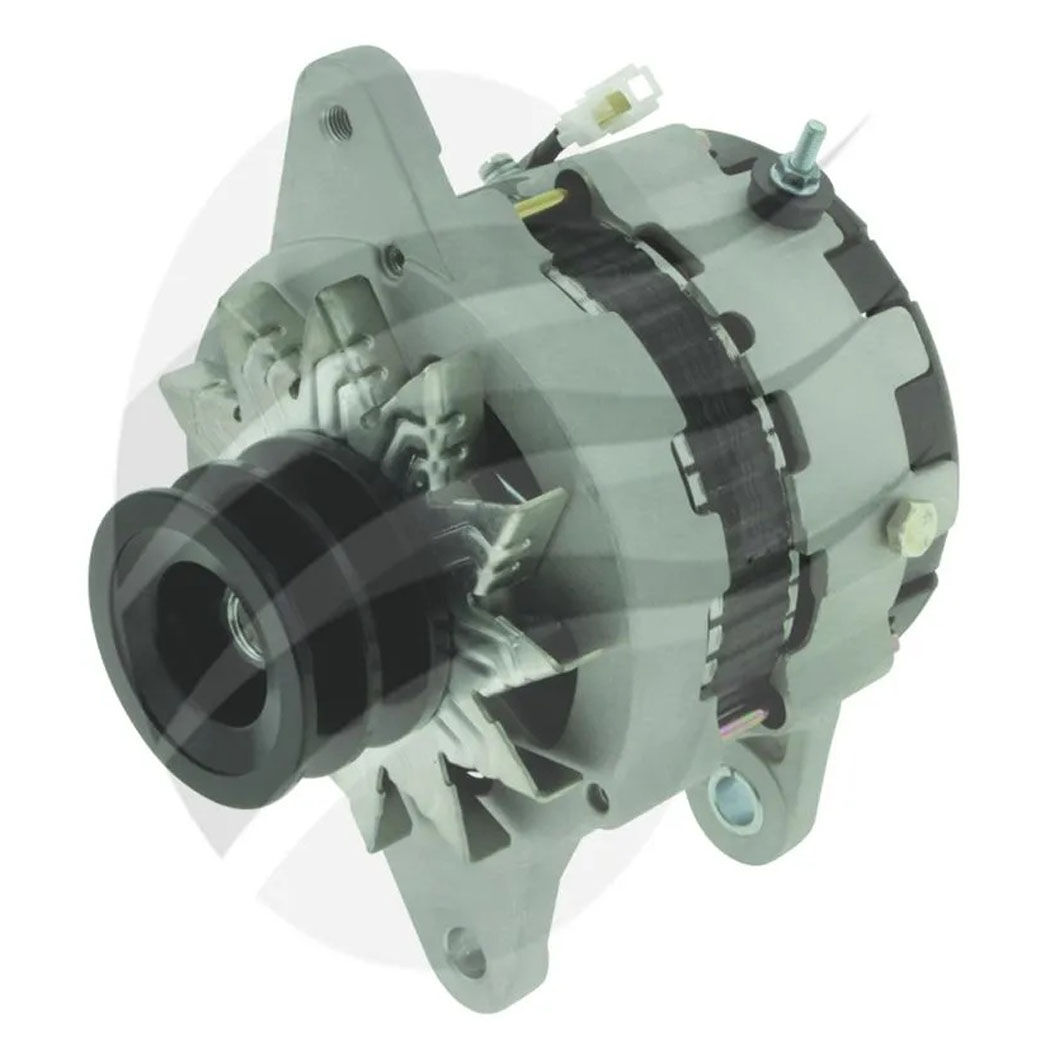

Jaylec Alternator 24V 55A For HINO RANGER FM FM3M,FM1J 2 Dr Truck Turbo Diesel

Jaylec Alternator 24V 55A For HINO RANGER FM FM3M,FM1J 2 Dr Truck Turbo Diesel Alternator Specifications

Specifications
Specification	Value
Voltage	24V
Amperage	55A
Mount Leg ID	86mm
C-C Mounts	220mm
Hole ID Top	M10
Hole ID Bottom	14mm
Pulley Type	TWIN "B"
Pulley Grooves	2
Pulley Diameter	81mm
Regulator Type	INTERNAL
Connections	Plug # EP100, EP130
Terminals	B+, IG, L, P
Excitation	EXTERNAL
Ground	NEGATIVE
Weight (Kg)	11.0kg

Fitment Information
HINO RANGER FM FM3M /1993~/2001 2 Door Truck DIESEL 9.9 litre, M10C 16 12v OHV Turbo Diesel Inj {...<\p>
HINO RANGER FM FM1J/1998/2002 2 Door Truck DIESEL 8.0 litre, J08CTG 16 24v SOHC I/C Turbo Dies...<\p>

SKU TP123557_1

Brand JAYLEC

Type Alternator
