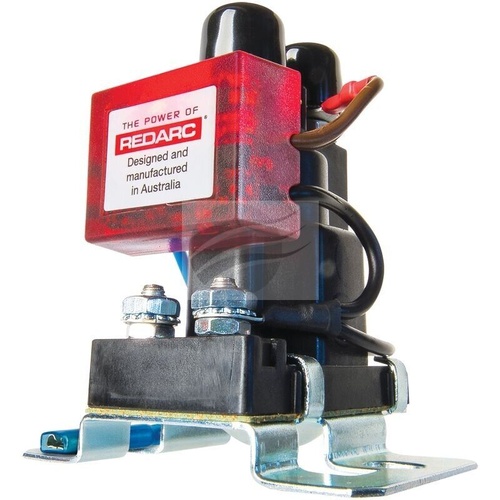

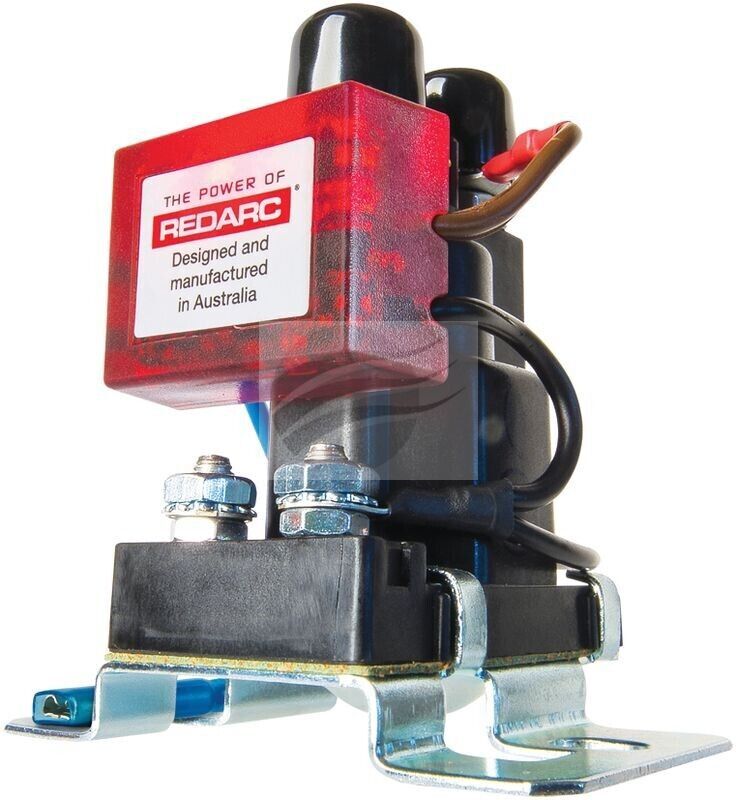

SBI12 Redarc 12V 100Amp BATTERY ISOLATOR C/RATE 400A MAX IN-RUSH RATING


TO SUIT 4WD AND COMMERCIAL VEHICLES WITH DUAL BATTERY SETUPS



  • Compact in size and easy to install
  • Silver contacts for longer life and suitable for marine applications
  • Power saving technology
  • Fault indication
  • Fully surge protected

Specifications

  • Dimensions : 75L x 63W x 80H
  • Weight : 0.2kg
  • Voltage System : 12 Volt
  • Off Volts : 12.7V
  • On Volts : 13.2V
  • Max Cont. A : 100 Amps
  • Max Inrush A : 400 Amps
Off Volts: 12.7 Volts. On Volts: 13.2 Volts.
Maximum Inrush Rating: 400amps.
Microprocessor-controlled Battery Isolator designed for use in multi-battery applications as a solenoid priority system to protect the start battery from excessive discharge whilst allowing the auxiliary battery to supply non essential loads. Ensures a low charge in the secondary battery won't drain the primary battery.
Silver Contacts- Cooler operating temperature- engaged draws 0.15amps- Fault indication- Red LED Light for solenoid activation- fully surge protected.
Applications: 4WD and Commercial vehicles with dual battery setups.
Approximate Weight: 200g.
2 year Warranty.
