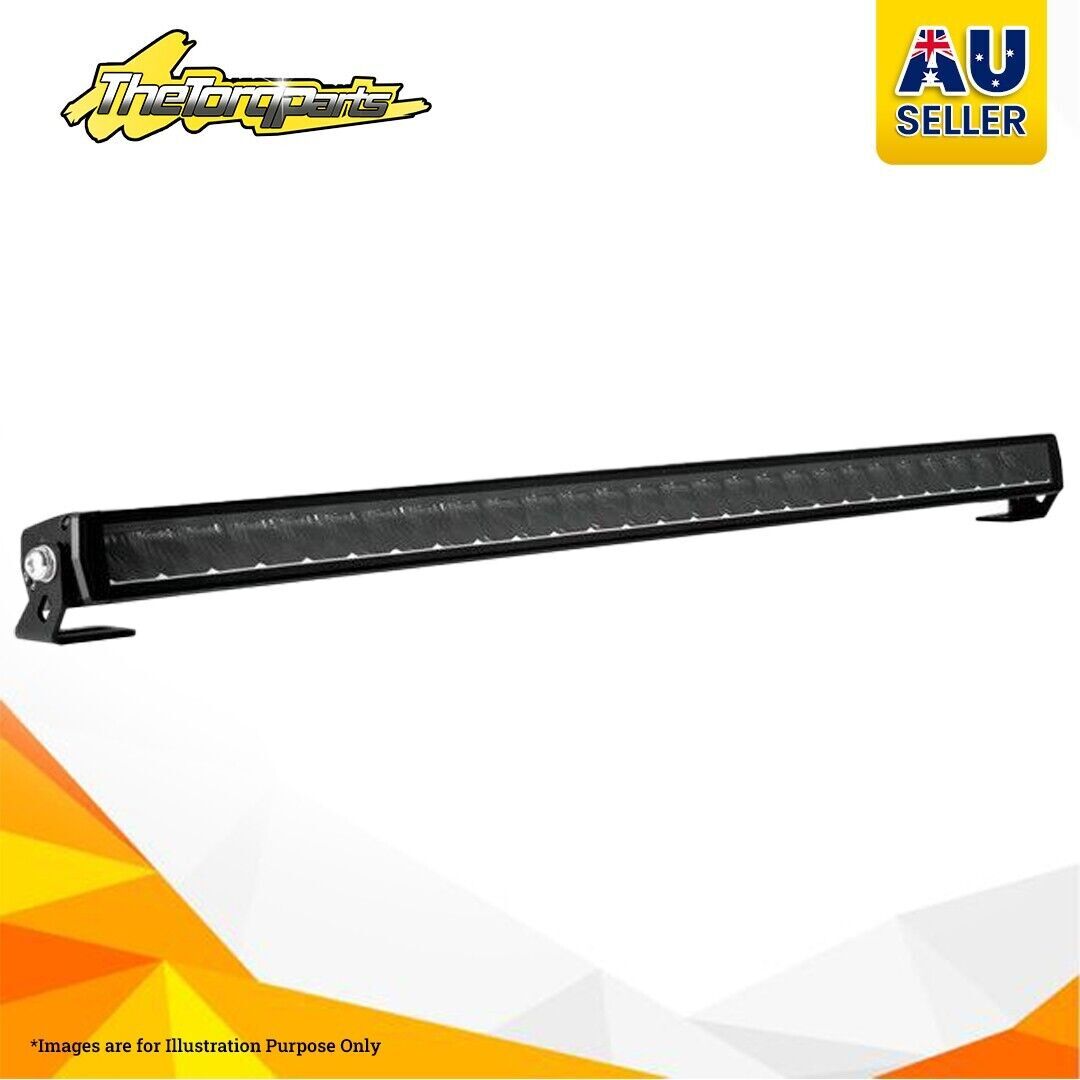

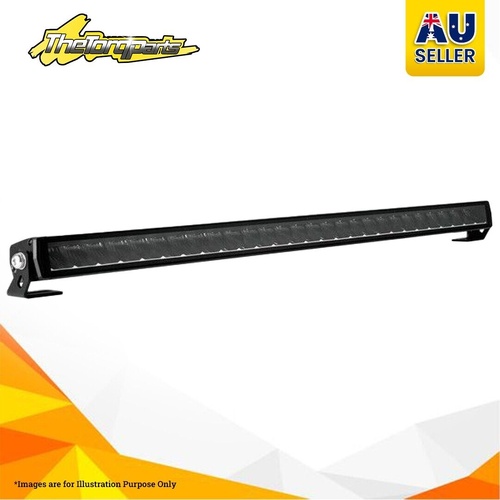

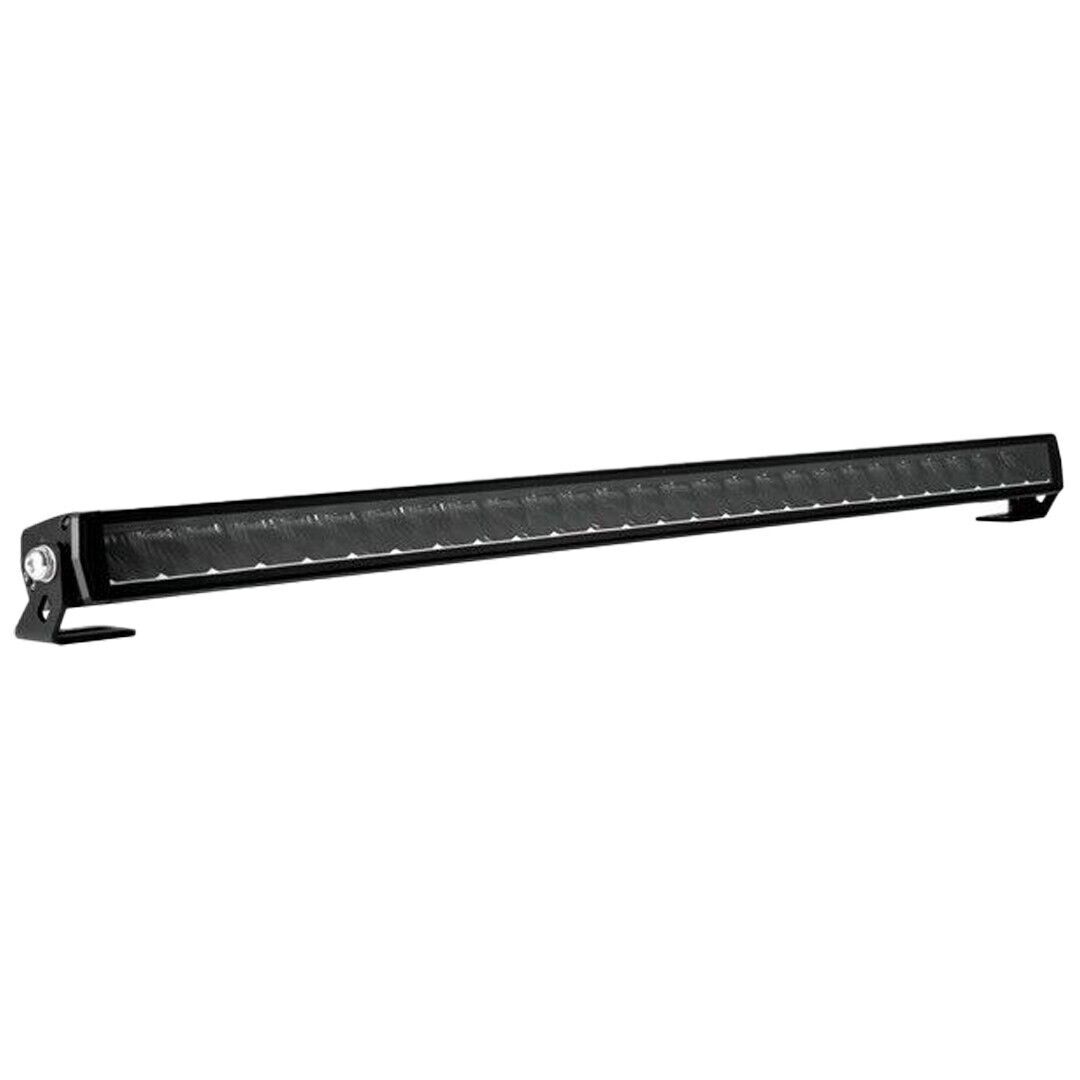

27 LED DRIVING LAMP LIGHTBAR DRIVING BEAM 9-36V 135W 12,200Lm

Contains 1 Item

Product Description

Ignite Ultra Slimline Single Row LED Driving Lamp Lightbar 9 - 36 Volt 135 Watt

• 35° Driving Beam Pattern
• 27 x 5 Watt High Intensity LG LED's
• 12,200 Raw and 9,800 Effective Lumens and 6,500K
• 1 Lux @ 491m and 241,080cd Peak Beam Intensity
• Current Draw: 8.2amp @ 12 Volt and 3.9amp @ 24 Volt
• Polycarbonate Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
• Light Transmittance >95%
• Integrated Electronic Thermal Management (ETM)
• Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
• Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
• Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bar's length
• 500mm Lead with 2 Pin Deutsch Plug
• Over and Under Voltage Protection
• Reverse Polarity Protection
• UV, Water and Shock resistant
• Anti Rust, corrosion and freezing resistance
• 50,000 Hours LED Lifespan
• ECE R112 (Ref 50), R10 and CE Approved
• IP68 and IP69K Rating
• Environment Temperature: -40°C ~ +60°C
• Weight: 9kg
