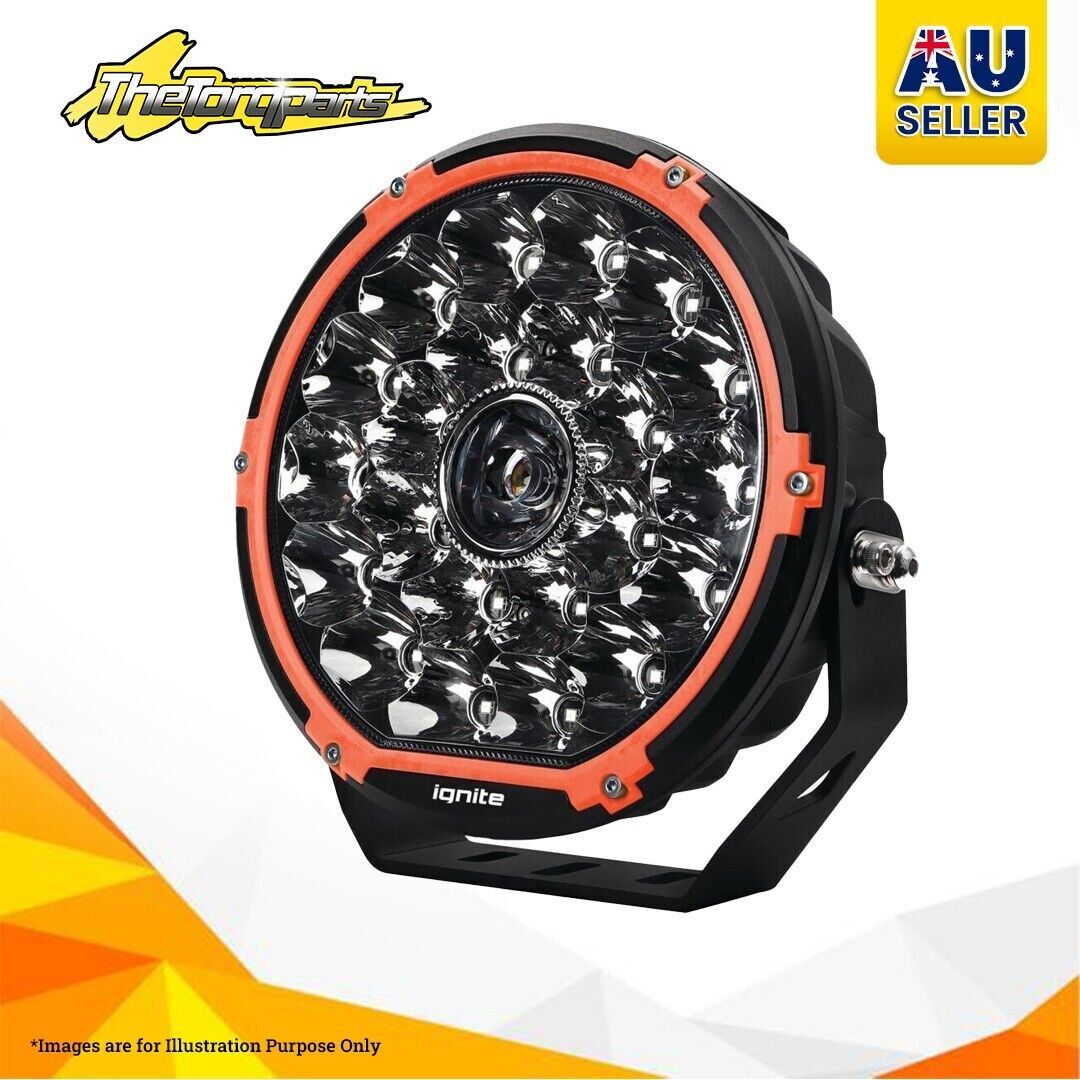

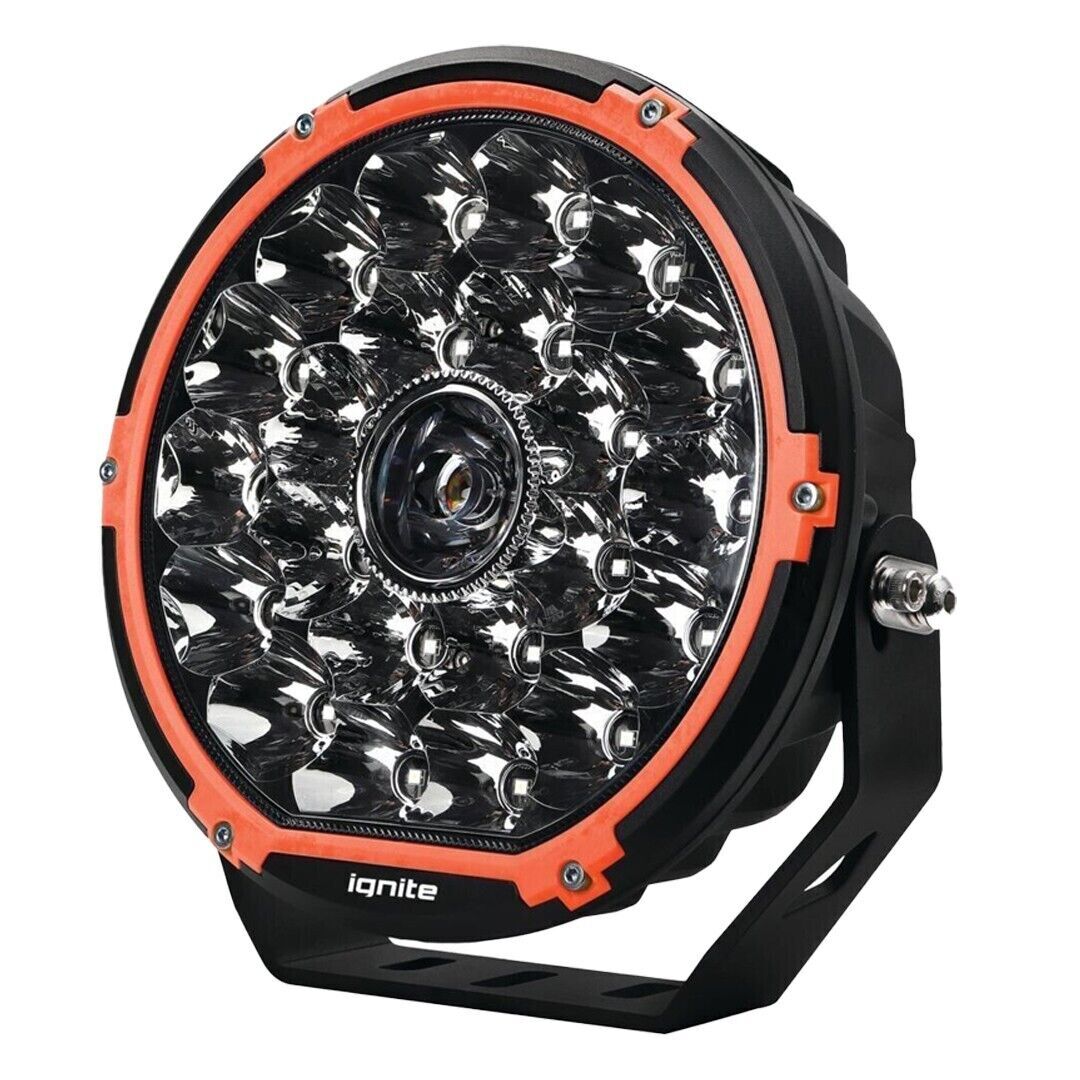

9" LASER LED DRIVING LAMP SPOT BEAM 8 Deg 9-36V 152 Watt BLACK

Contains 1 Items

Product Description

Ignite 9" Round Slimline Laser LED Driving Light 9 - 36 Volt 152 Watt

Combined Laser LED and LED Illumination Technology

Orange Bezel fitted standard with interchangeable Black bezel also supplied

8° Laser Pencil Beam and 10° LED Spot Beam providing a combined Driving Beam pattern

22 x 6 Watt High Intensity LP LED's and 1 x 20 Watt High Intensity Osram Laser LED

14,500 Raw and 12,300 Effective Lumens and 6,000K

1 Lux @ 1,008m and 1,016,000cd Peak Beam Intensity

Current Draw: 11.4amp @ 12 Volt and 5.7amp @ 24 Volt

Combined Polycarbonate Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens

Integrated Electronic Thermal Management (ETM)

Black Powder coated Die Cast Aluminium Alloy (ADC12) Housing with integrated Heat-Sink and Pressure Equalising Vent

Stainless Steel (SUS304) Multiple Bolt Mount Bracket and Hardware

500mm Lead with 2 Pin Deutsch Plug

Over and Under Voltage Protection

Reverse Polarity Protection

UV, Water and Shock resistant to 15G

Anti Rust, corrosion and freezing resistance

50,000 Hours LED Lifespan

ECE R10 and CE Approved

IP68 and IP69K Rating

Environment Temperature: -40°C ~ +60°C

Weight: 2.6kg
