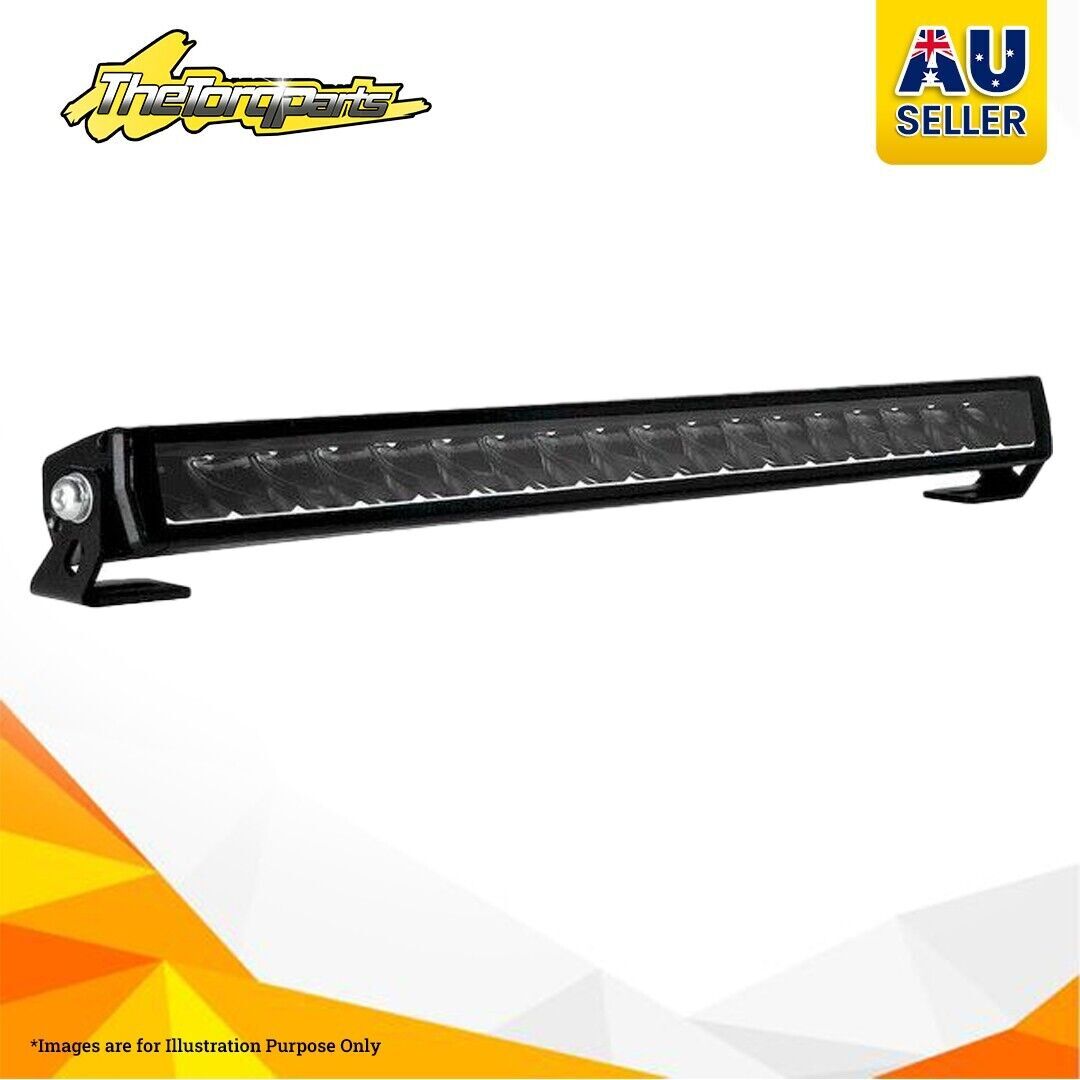

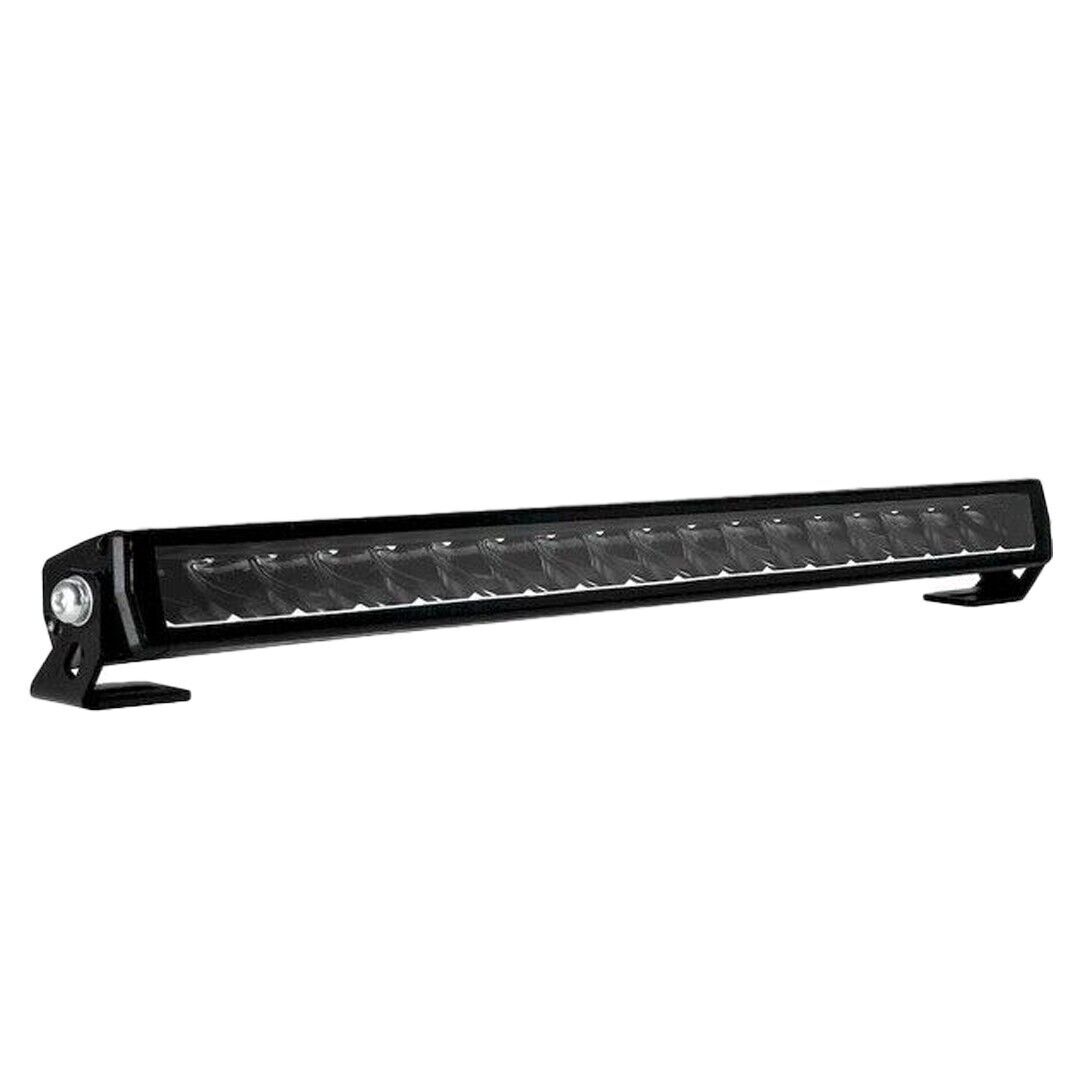

18 LED Ultra Slimline Single Row Dual Colour Lightbar Driving Beam 9-36V 144W
Contains 1 Items
Product Description
Ignite Ultra Slimline Single Row Dual Colour LED Driving Lamp Lightbar 9 - 36 Volt 144 Watt
- Dual White and Amber Illumination - user selectable
- 35° Driving Beam Pattern
- 12 x 8 Watt High Intensity White LP LED's and 6 x 8 Watt High Intensity Amber LP LED's
- 9,600 Raw and 8,100 Effective Lumens and 6,000K on White Illumination
- 4,800 Raw and 4,000 Effective Lumens and 3,200K on Amber Illumination
- 1 Lux @ 450m and 202,500cd Peak Beam Intensity on White Illumination
- 1 Lux @ 310m and 96,600cd Peak Beam Intensity on Amber Illumination
- Current Draw: 5.3amp @ 12 Volt and 2.5amp @ 24 Volt on White Illumination
- Current Draw: 2.9amp @ 12 Volt and 1.4amp @ 24 Volt on Amber Illumination
- Polycarbonate Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
- Integrated Electronic Thermal Management (ETM)
- Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
- Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
- Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
- 500mm Lead with 2 Pin Deutsch Plug
- Over and Under Voltage Protection
- Reverse Polarity Protection
- UV, Water and Shock resistant
- Anti Rust, corrosion and freezing resistance
- 50,000 Hours LED Lifespan
- ECE R112 (Ref 50 and 25), R10 and CE Approved
- IP68 and IP69K Rating
- Environment Temperature: -40°C ~ +60°C
- Weight: 1.12kg
Specifications
| Specification | Details |
|---|---|
| Series | Other |
| Type | LED |
| Voltage | Multivolt |
| Watts | Other |
| Beam Type | Other |
| Rows | Single |
| No. of LED | 18 |
| Mount | Other |
| SKU | ILB604DC |
| Brand | IGNITE |
| Unit Of Measure | ea |
