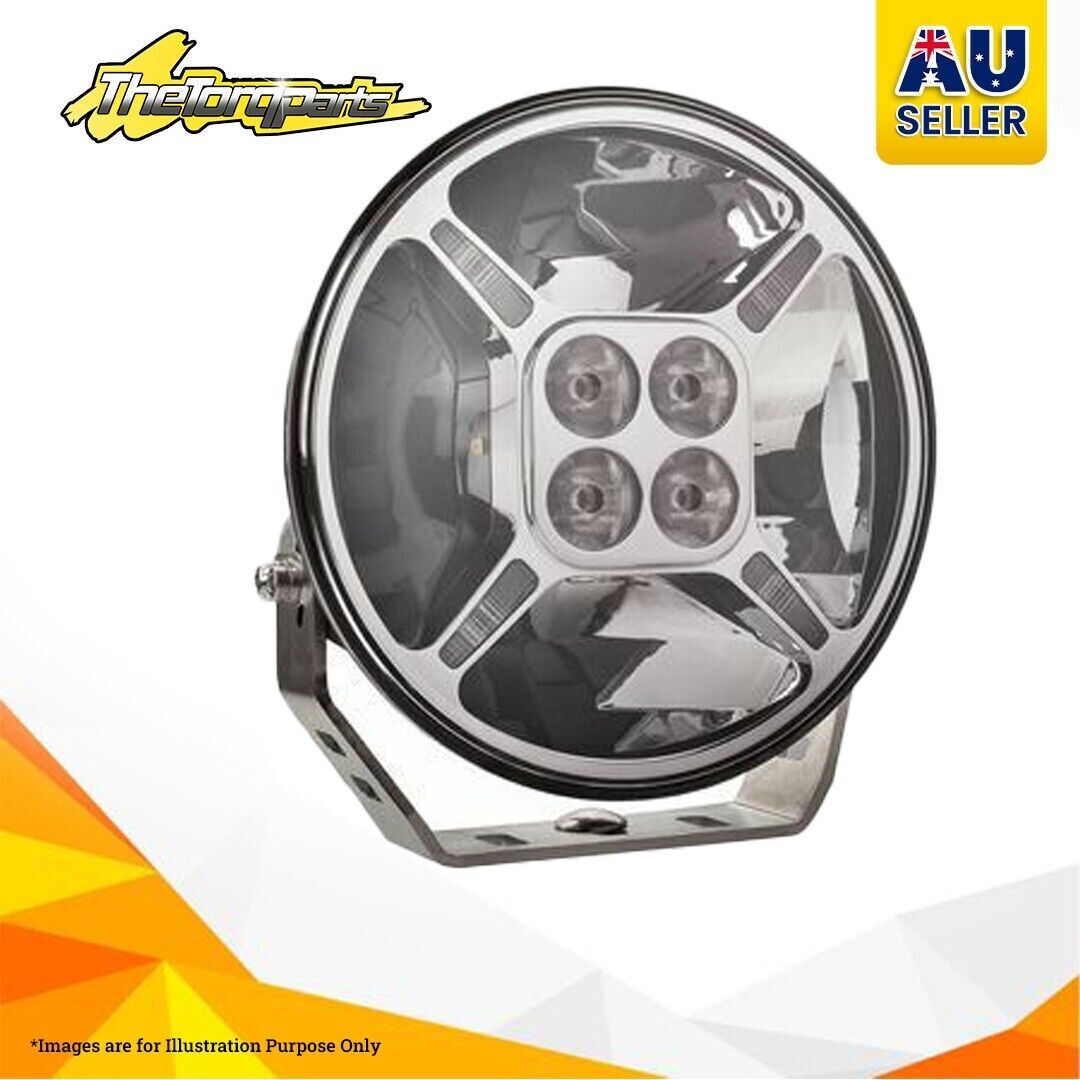

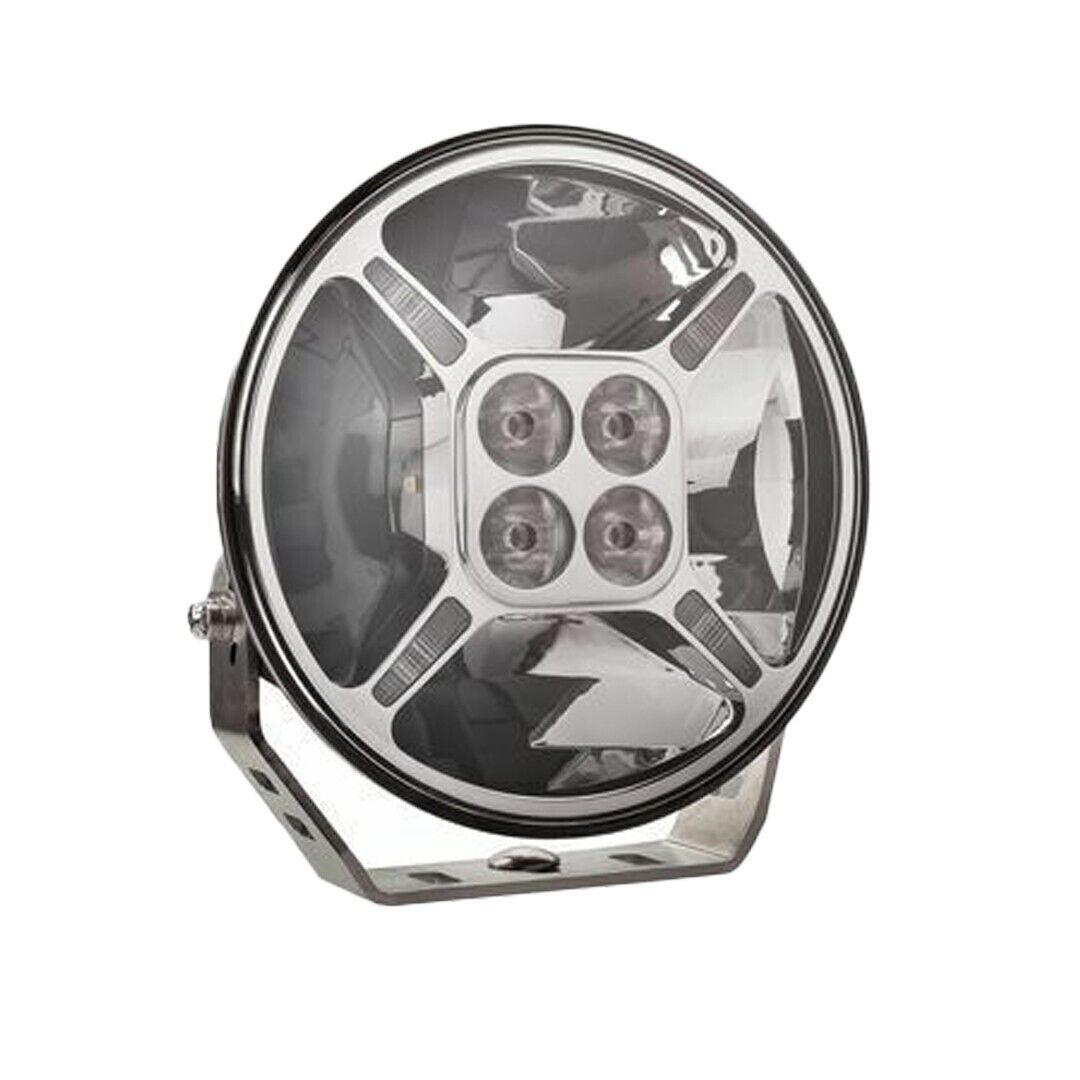

9" Round LED Driving Lamp Driving Beam 9-36V 120W Chrome Fascia 12,000Lms

Contains 1 Items

Product Description

9" Hulk Professional Round LED Driving Lamp 9 - 36 Volt 120 Watt

• With White or Amber Front Position Lamp function - Chrome Fascia
• 30° Driving Beam Pattern
• 4 x 20 Watt High Intensity CREE LED's and 4 x 10 Watt High Intensity CREE LED's
• 12,000 Raw and 10,200 Effective Lumens and 5,700K
• 1 Lux @ 469m and 215,000cd Peak Beam Intensity
• Current Draw: 8.9amp @ 12 Volt and 4.3amp @ 24 Volt
• Combined Polycarbonate Reflector Focusing Optic Drive Technology and Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens
• Integrated Electronic Thermal Management (ETM)
• Black Powder coated Die Cast Aluminium Alloy (ADC12) Housing with integrated Heat-Sink and Pressure Equalising Vent
• Stainless Steel (SUS304) Multiple Bolt Mount Bracket and Hardware
• 500mm Lead with 2 Pin Deutsch Plug and 2 Bare wires
• Over and Under Voltage Protection
• Reverse Polarity Protection
• UV, Water and Shock resistant to 15G
• Anti-rust, Corrosion and Freezing Resistance
• 50,000 Hours LED Lifespan
• ECE R112 (Ref 45), R10, R7 and CE Approved
• IP68 and IP69K Rating
• Environment Temperature: -40°C ~ +60°C
• Weight: 2.1kg
