LED Headlight 10-30V High/Low Beam 60W With Indicator Black Face

Contains 1 Items

Product Description

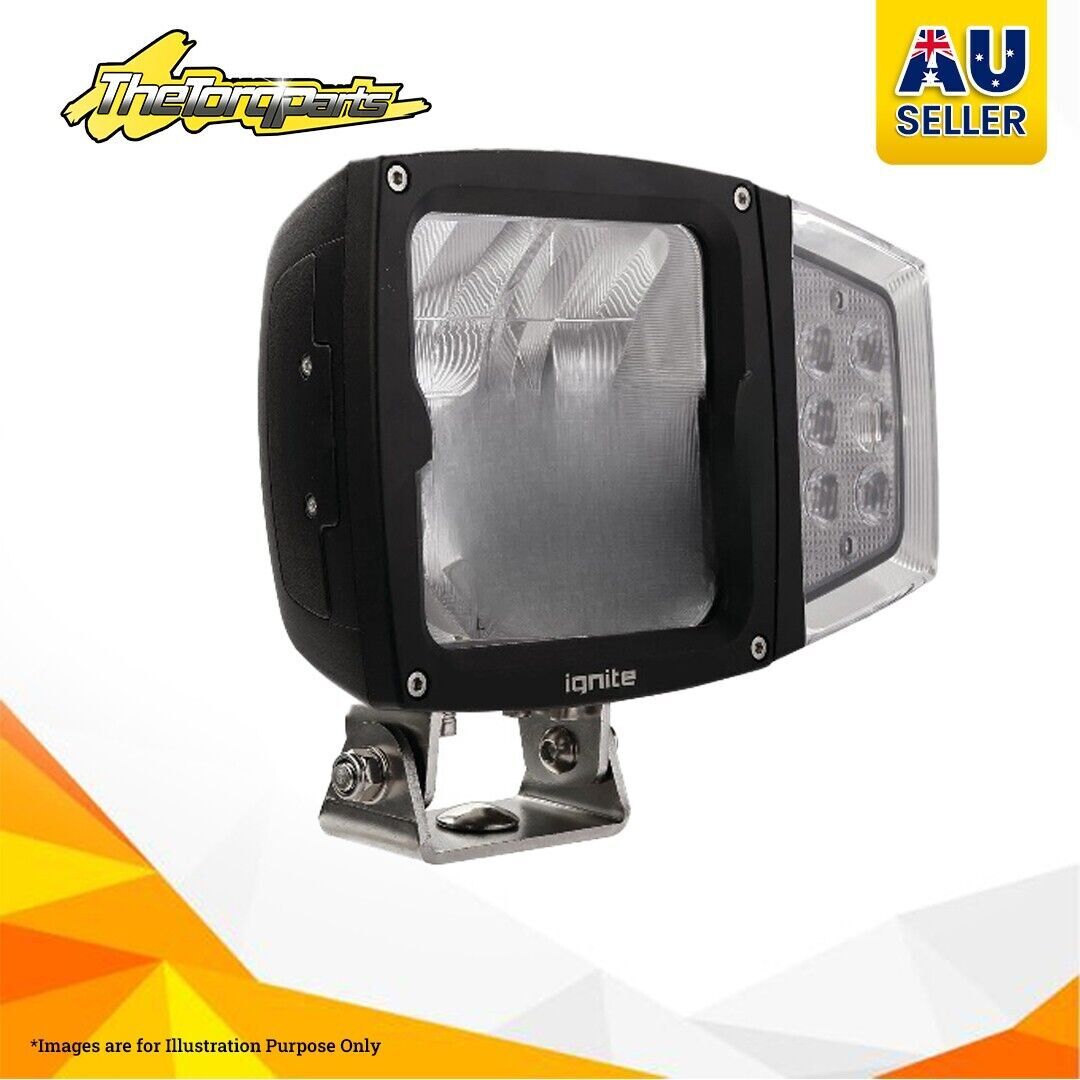

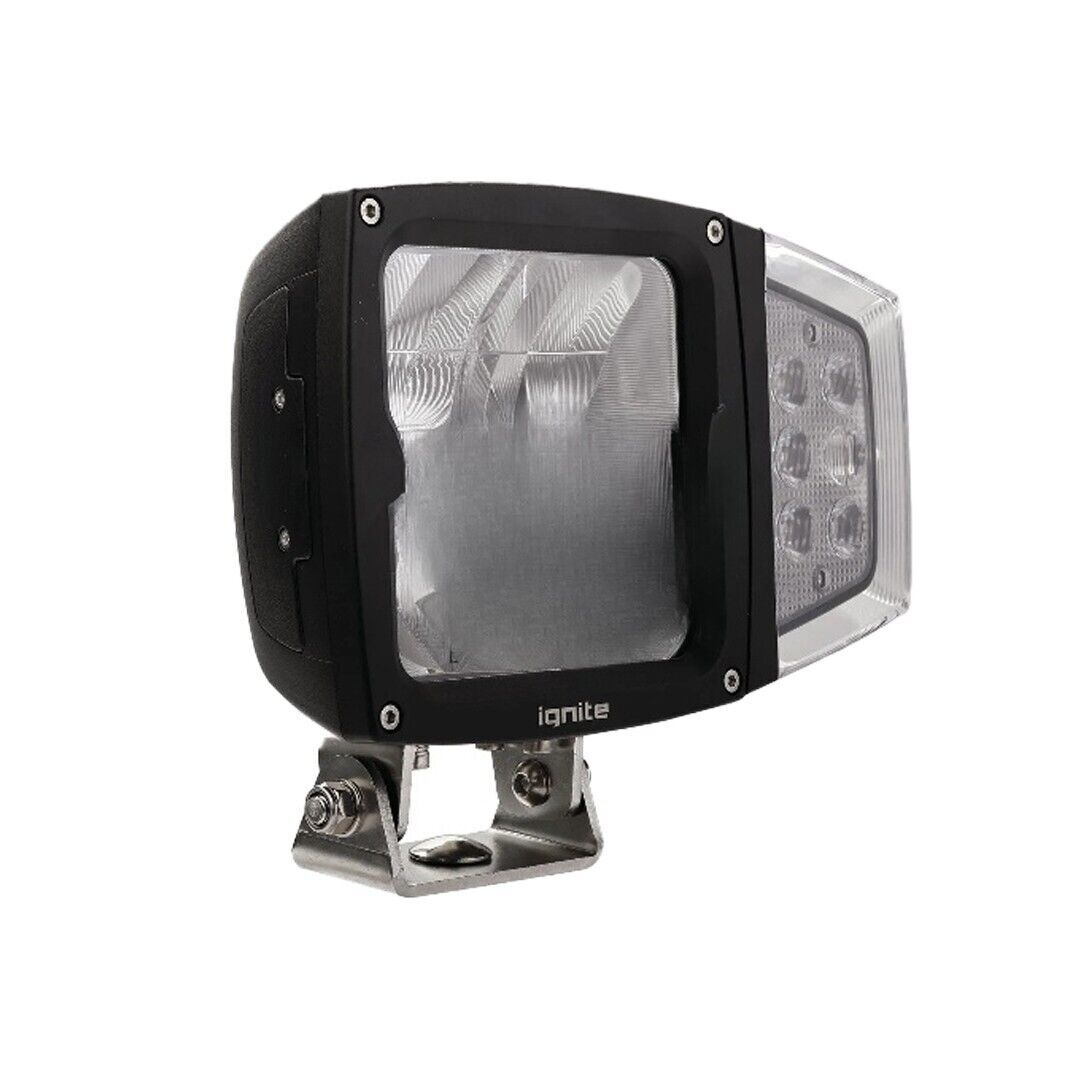

Ignite Square Combined LED Head and Indicator Lamp 10 - 30 Volt 80 Watt

• 227.5mm x 150mm - Black Fascia
• High / Low Beam, Position and Indicator Lamps
• 2 x 10 Watt High Intensity ETI LED's for Low Beam
• 4 x 10 Watt High Intensity ETI LED's for High Beam
• 5 x 5 Watt High Intensity Prolight Amber LED's for Indicator Lamp
• 2 x 1 Watt LumiLEDs LED's for Position Lamp
• Low Beam: 1,800 Raw Lumens and 1,530 Effective Lumens and 5,700K
• High Beam: 3,600 Raw Lumens and 3,060 Effective Lumens and 5,700K
• Indicator Lamp: 400 Raw Lumens and 340 Effective Lumens and 2,200K
• Position Lamp: 160 Raw Lumens and 130 Effective Lumens and 5,700K
• Current Draw: 6.7amp @ 12 Volt and 3.31amp @ 24 Volt
• Polycarbonate Free Form Optical Reflector Technology for Low and High Beam Lamps
• Polycarbonate Lens assembly
• Integrated Electronic Thermal Management (ETM)
• Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
• Indicator Lamp has multi-directional mounting allowing it to be mounted on the Left Hand side, Right Hand side or on top of the Headlamp housing providing diversity of mounting options
• Stainless Steel Single Bolt Mount Bracket and Hardware
• 400mm Lead with 4 Pin Deutsch Plug
• Over and Under Voltage Protection
• Reverse Polarity Protection
• UV, Water and Shock resistant
• 50,000 Hours LED Lifespan
• ECE R6, R7, R10, DOT and CE Approved
• IP68 and IP69K Rating
• Environment Temperature: -40°C ~ +60°C
• Weight: 1.5kg
